Description

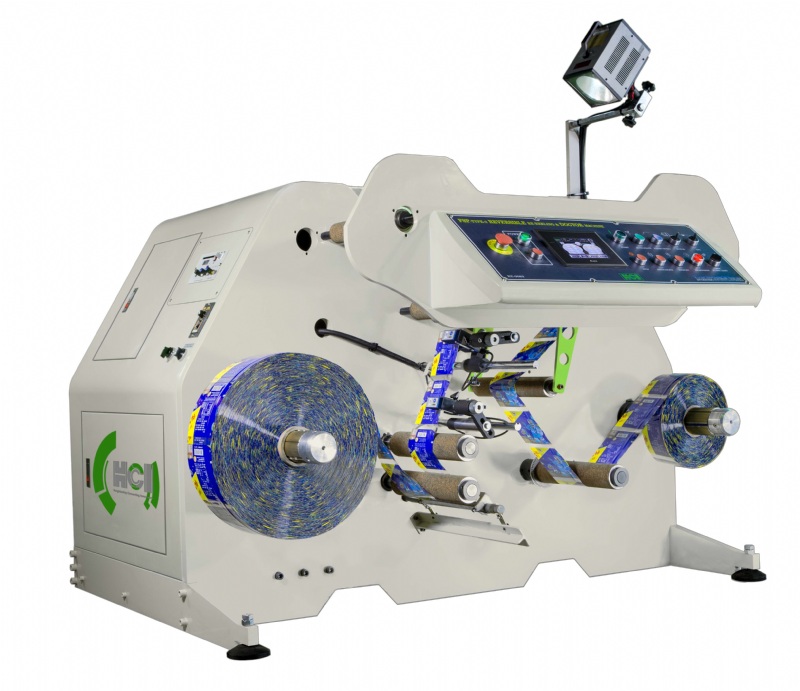

Cantilevered unwind air shaft for quick change over, the roll diameter can reach to 700mm with 2 different web path for inspection of printing defects or seaming quality.
Both unwind and rewind by motor driven, allow the winding direction changed during operation. Load cell type tension controller to ensure the rewinding tension stable.
Equipped with web guiding system (forward direction) creates an extremely neat edge, also can have extra ultrasonic sensor upgrading to CPC central guiding and SPC oscillation function.
Equipped with observed board and fluorescent lamps for visual checking, also can have air inflation checking system (option) for checking seaming quality.
HMI touch screen control panel for tension setting, parameters memory, preset meters stop and memory reverse function.
Both unwind and rewind by motor driven, allow the winding direction changed during operation. Load cell type tension controller to ensure the rewinding tension stable.
Equipped with web guiding system (forward direction) creates an extremely neat edge, also can have extra ultrasonic sensor upgrading to CPC central guiding and SPC oscillation function.
Equipped with observed board and fluorescent lamps for visual checking, also can have air inflation checking system (option) for checking seaming quality.
HMI touch screen control panel for tension setting, parameters memory, preset meters stop and memory reverse function.
