Description

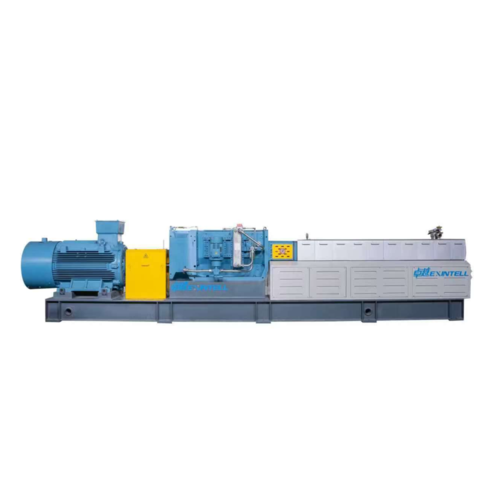

Our latest high-performance twin-screw extruder features ultra-high speed (900–1200 rpm) and ultra-high torque (torque rating f = 16.5 N·m/cm³), delivering outstanding efficiency, stability, and intelligent processing performance.
Key Highlights:
• Equipped with a 300 kW permanent magnet synchronous water-cooled motor, achieving 1.5–1.7% higher energy efficiency compared with conventional AC motors.
• Self-developed ultra-high torque symmetrical gearbox with proprietary intellectual property for stronger and more stable transmission.
• Barrel with annular water-channel cooling and heater rod heating design, improving cooling efficiency by 18% and heating efficiency by 22%.
• High-strength spline shaft manufactured from high-carbon chromium bearing steel using advanced cold extrusion forming technology, increasing torsional strength by 18–30% over traditional machining methods.
• Newly designed anti-backflow venting system effectively prevents condensate contamination during processing.
• Optimized die head flow channel with user-friendly design ensures uniform discharge, easy maintenance, and suitability for high-output production.
• Fully integrated with ZY-TOUCH 3.0 intelligent operating system, featuring standalone MES integration and full-port remote monitoring for real-time production data.
Key Highlights:
• Equipped with a 300 kW permanent magnet synchronous water-cooled motor, achieving 1.5–1.7% higher energy efficiency compared with conventional AC motors.
• Self-developed ultra-high torque symmetrical gearbox with proprietary intellectual property for stronger and more stable transmission.
• Barrel with annular water-channel cooling and heater rod heating design, improving cooling efficiency by 18% and heating efficiency by 22%.
• High-strength spline shaft manufactured from high-carbon chromium bearing steel using advanced cold extrusion forming technology, increasing torsional strength by 18–30% over traditional machining methods.
• Newly designed anti-backflow venting system effectively prevents condensate contamination during processing.
• Optimized die head flow channel with user-friendly design ensures uniform discharge, easy maintenance, and suitability for high-output production.
• Fully integrated with ZY-TOUCH 3.0 intelligent operating system, featuring standalone MES integration and full-port remote monitoring for real-time production data.
