Electrical Control System

The electrical control system connects the complete set of equipment. It is the guarantee of long-term stable operation of the compound mixing line. We design the electronic control system, including the on-site operation cabinet and the central control system, and can realize the following functions:
1. Automatic detection functions:
● Automatically detect the operation of all motors in the production process,
● automatically detect various types of production process switches. Valve switch in place or not.
● automatic detection of the production process of the packaging scale, Ingredients weight information,
● Automatic detection of the production process shows a record of, accumulation of production situations.

2. Control functions (the entire system achieves three-level control):
● individual live switch buttons’ hard-hand operation,
● control room manual operation,
● PLC automatic control and PC keyboard and mouse control on the screen. If the computer fails, ensure that the PLC maintains a period of production until the computer is troubleshooting.
3. Automatic alarm, Interlock functions:
● Motor abnormal status alarm
● Valve position abnormal alarm
● Technical parameters limit alarm, such as material level, weight, pressure, and so on.
● Punching and interlocking control of various valve positions.
● Hot cooler mixer interlock control and other important equipment classification alarm

4. Self-diagnostic functions:
● Detection of the equipment malfunction, Indicator, Alarm
5. Management functions:
● Visible human-computer interface.

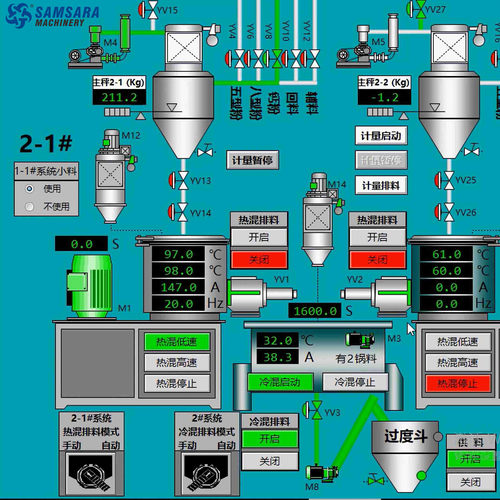

● Process flow chart. Total screen and sub-screen display
● Control parameter trend graph
● Operational guidance
● Automatic production control curve
● Automatic collection and preservation of data and classification management. Automatic statistical processing of data
● Historical data management. Can print the class report. Daily report. Monthly report and annual report. And the bar chart for the senior.
● Automatic printing
● Security. Confidential group management, Weighted operation.
● Open architecture. Extensible. Can be remotely networked

---
